Using the TUI

Select models, set prompts, tune parameters, and interpret the output inside of the TUI.

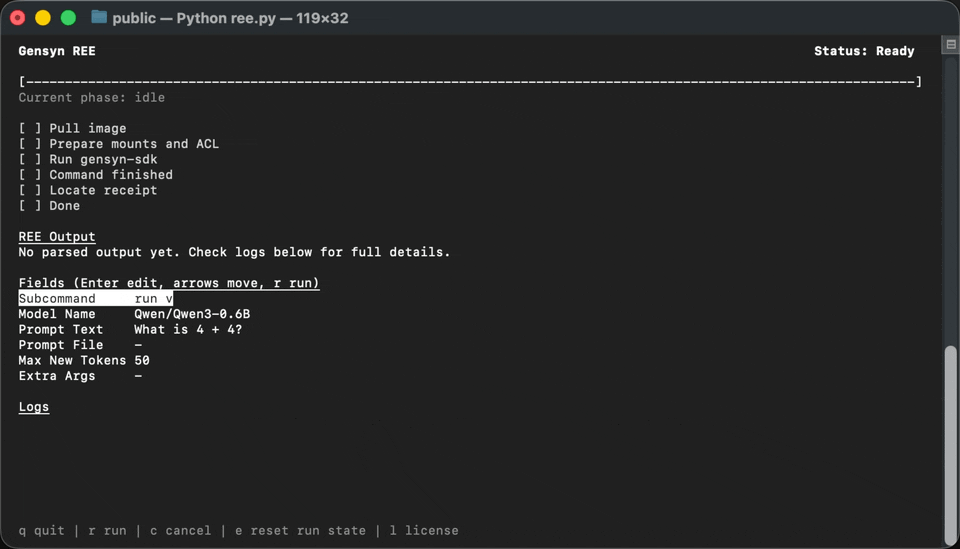

Text User Interface (TUI)

The REE TUI is the primary way to interact with REE.

It wraps the full pipeline: [1] model export, [2] compilation, [3] inference, [4] decoding, and [5] receipt generation, behind an interactive form. You configure your run, press r, and the TUI handles everything else.

The interface has two main states: the configuration form where you set up your run, and the results view where you see output, logs, and the receipt path after a run completes.

Configuring a Run

Each field in the form controls a different aspect of the generation. Here's what each one does and when you'd change it.

Subcommand

This is where you choose which action to perform. The TUI offers three subcommands:

Subcommand	What it does
run	The default. Runs the full inference, receipt generation, and decoding pipeline from end-to-end.
validate	Checks that a receipt is structurally valid and internally consistent (hashes match). Does not re-run inference.
verify	Re-runs the inference described in a receipt and compares the output against it. This is the strongest check, which proves the result is reproducible.

Model Name

The Hugging Face model ID to use for inference (e.g., Qwen/Qwen3-0.6B, meta-llama/Llama-3-8B). Press Enter to edit, type the model ID, and press Enter again to confirm.

Any Hugging Face model compatible with the system can be used, including those in this list of verified compatible models.

The first time you use a model, REE will download it from Hugging Face and export it to ONNX format. Subsequent runs with the same model reuse the cached export, so they start much faster.

If you have a specific model in mind that doesn't work with REE, you can reach out to the Gensyn team by creating an issue in the GitHub repository and we'll do our best to support it.

Prompt Text

The prompt to send to the model. Press Enter to edit, type or paste your prompt, and press Enter to confirm.

This is the simplest way to provide a prompt and works well for short to moderate-length inputs.

Prompt File

This is where you’d paste the path to a local JSONL file containing your prompt.

Each line in the file must be either a JSON string (e.g., "What is 2 + 2?") or a JSON object with a prompt field (e.g., {"prompt": "Explain deterministic inference."}). Note that plain .txt files are not supported and will produce unhelpful errors.

The prompt file must be valid JSONL.

If both Prompt Text and Prompt File are filled in, entering any text in either field will clear the other. To revert to inline text, simply enter something in the Prompt Text field, and the Prompt File field will be auto-cleared.

Max New Tokens

The maximum number of tokens the model will generate, which defaults to 50. You can increase this for longer outputs. Generation will stop earlier if the model produces an end-of-sequence token before hitting this limit.

Extra Args

These are optional flags that control how the generation runs. This is where you set the operation mode, sampling parameters, and other advanced options. To use these, just type them as you would CLI flags, separated by spaces.

Common flags you'll use here:

Flag	Default	Description
--operation-set	reproducible	default, deterministic, or reproducible. Controls whether RepOp kernels are used.
--cpu-only	false	Force CPU execution even if a GPU is available.
--temperature	1.0	Sampling temperature. Higher values produce more random output.
--top-k	50	Top-k sampling cutoff.
--top-p	1.0	Nucleus sampling threshold.
--min-p	Disabled	Min-p sampling threshold.
--do-sample / --no-do-sample	Enabled	Enable or disable stochastic sampling.
--repetition-penalty	1.0	Repetition penalty multiplier.
--force-model-export	false	Re-export the ONNX model even if a cached version exists.
--disable-kv-cache	false	Disable KV cache during generation.
--short-circuit-length	—	Generation step at which to inject the short-circuit token.
--short-circuit-token	—	Token ID to inject when short-circuiting.

Example: --operation-set reproducible --temperature 0.7 --top-p 0.9

Operation Set

This flag is called --operation-set because it controls which set of operations the PyTorch runtime uses during inference: either standard PyTorch kernels, PyTorch's deterministic kernels, or Gensyn's RepOp kernels. It is the most important flag you'll set in the Extra Args field.

It determines what kind of reproducibility guarantees your run has, which directly affects whether your receipt can be verified by others.

There are three options:

1. default: Uses standard PyTorch kernels with no reproducibility guarantees. The same run on the same machine might produce different outputs each time. Use this when you're experimenting or testing and don't need a verifiable receipt.

2. deterministic: Uses PyTorch's built-in deterministic algorithms. Your results will be consistent across multiple runs on the same machine, but will differ if someone tries to verify your receipt on different hardware. Use this when you need repeatable results for your own work but aren't sharing receipts for third-party verification.

3. reproducible: Uses Gensyn's RepOp kernels, which guarantee bitwise-identical results across any supported hardware. This is the mode you want when generating receipts that others will verify. It's slightly slower than the other modes, but it's the only one that makes your receipt truly portable.

As a rule of thumb: if someone else will ever run verify on your receipt, use reproducible. If it's just for you, deterministic is fine. If you don't care about reproducibility at all, default is the fastest.

Running a Generation

Once your fields are configured, press r to start the run.

The TUI switches to a progress view showing each stage of the pipeline as it completes. You'll see status updates as REE pulls the container image, prepares the model, runs inference, and assembles the receipt.

If something goes wrong, the progress view will show which stage failed and the Logs section will contain the full output for debugging.

Reading the Output

After a successful run, the TUI displays several populated fields:

• REE Output: The path to the receipt file and the model's generated text.

• Logs: Full pipeline output, useful for debugging or inspecting what happened during each stage.

• Receipt path: The location of your receipt file (e.g., metadata/receipt_20260311_155048.json).

Demonstrations

You can find a list of common workflow examples and demonstrations here along with the additional arguments and parameters you'll need to set.

Controls Reference

Key	Action
Enter/Return	Edit the selected field
up, down, left, right (arrow keys)	Move between fields
r	Run the generation (or re-run from results view)
q	Quit the TUI
c	Cancel a running generation
e	Reset the run state and return to the configuration form
l	View the REE license
